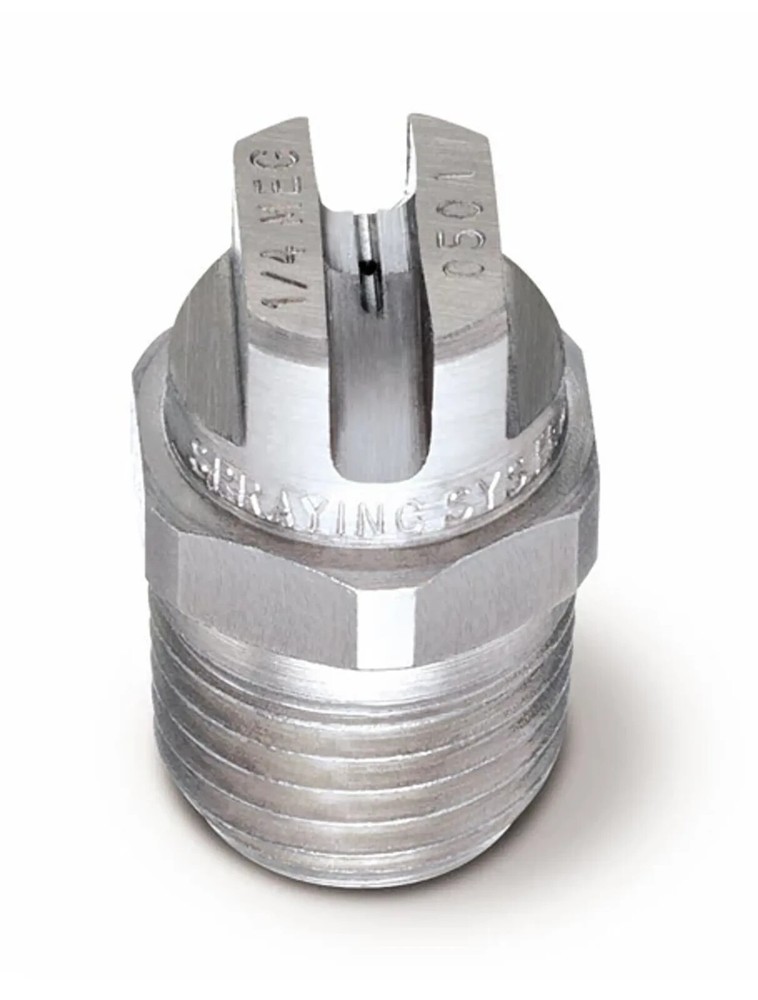

Spraying Systems 1/4″ MEG 0512 SS WashJet Spray Nozzle Tip 5 Deg 12.0 Orifice
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Brand | Spraying Systems |
| Model | WashJet |
| Inlet | 0.25 in |
| Maximum Pressure | 3000 psi |
| MPN | SA1/4MEG-0512 |
Description: High-impact sprays and high-pressure operation ensure optimal cleaning – ideal for pressure washingLong wear life – 400 series stainless steel materialFlat spray nozzles provide an even edge fan type spray patternSpray angles from 0° (solid stream) to 65° for MEGOperating pressures from 300 to 3000 psi (20 to 275 bar) Flow: As the liquid exits through the rounded U shape of the orifice, it forms into a flat spray pattern. The distribution is even at pressures above 300 psi (20 bar). Specifications: Capacity Size: 12Inlet Connection Gender: MaleInlet Connection Size: 1/4 inInlet Connection Thread Type: NPTInlet Connection Type: Threaded (Male NPT)Liquid Flow Rate at Rated Pressure: 1.2 GPMMaterial Composition: Hardened Stainless SteelModel: MEGSpray Angle at Rated Pressure: 5°Tip Type: MEGSpray Angle: 5° @ 40 psiBrand: WashJet®Body Hex Size: 9/16 inLength: 1 inLiquid Flow Rate Range: 1.2 - 10.4 GPMLiquid Pressure Range: 40 - 3,000 PSISpray Pattern: Flat Fan
